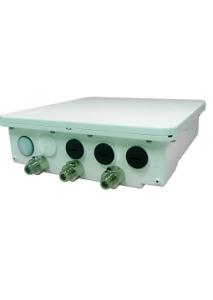

EX8210 8 Line Multipoint Radio

EX8210 8 Line Multipoint Radio

EX8210 is a short, medium or long haul 512 Kbit/s digital radio which can provide up to eight telephone channels in up to four multipoint locations. You can also can drop off some telephone channels to add V35 or ethernet data to provide for example, one voice plus one data circuit at a location. The radio is field programmable through a PC allowing the selection of lines, system configuration and bandwidth along with diagnostic aids.

EX8210 provides full 64 Kbit/s PCM voice circuits for high quality voice plus 56 Kbit/s modem telephone circuits. 4 wire plus E&M circuits are also available and can be mixed with 2 wire telephone and V35/ethernet data for a truely flexible link. Medium to high gain antennas make the EX8200 ideal for urban, rural or remote location connections.

EX8200 is designed for operation in the harshest of environments Exicom products operate in globally.

Product Features and Benefits

512 Kbit/s data speed to share across up to 8 voice circuits at up to four remote locations plus synchronous V35 or ethernet data options
Provides cost effective short, medium or long haul multipoint links
Supports standard telephone services including voice, fax and modem data plus the optional data interfaces
Advanced construction methods enables robust and reliable operation in harsh temperature and difficult environmental conditions
Low power consumption for solar powered sites

Typical Applications

Telephone line extension
Mobile radio linking using 4 wire voice plus data circuits
Linking specialised data networks
SCADA
Power protection networks
Telemetry

Product Specifications

See attached PDF for detailed specs
Licence free 2.4 and 5.8 GHz bands
Up to 8 voice circuits, mix 2 wire and 4 wire circuits plus one V35/ethernet circuit
Repeater option to extend the range
